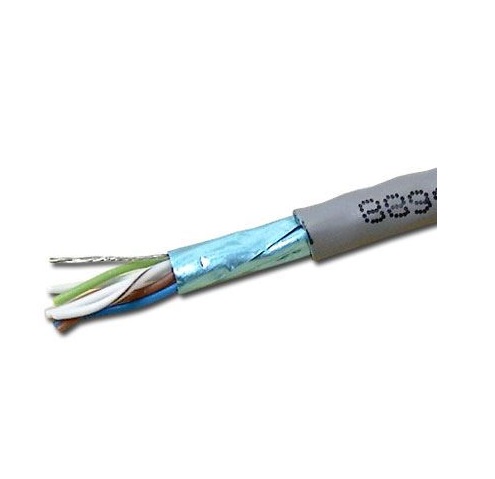

Cable Cat6 Shielded Grey 1000FT (NEW-9806351)

Conductor Material Solid Bare Copper
Nominal O.D. (mm) 0.565 Up +0.005
down -0.005
Insulation Material HDPE
Diameter 1.12 ± 0.05
Screening
Material
Mylar+ AL/Mylar
Jacket Material PVC (complies RoHS), UL (CMR)
Thickness 0.60 ± 0.05mm
External OD 7.4 ± 0.4mm
Colors Grey
Surface Clean, Frap, Satiation
Surface
Painting
Letter height 3.0 ± 0.3mm
Color Black
Print Error & Space ≤±0.5%, 1m
Core Color 1 White – Blue / Blue 2 White – orange/Orange
3 White – Green/Green 4 White – Brown/Brown
Packing Length 305 ±1.5m
Features:
 Standards ANSI/EIA/TIA
568-C.2 & ISO/IEC
11801, IEEE 802.3af
 CMR Rated
 Applications: Suitable for
Data Applications, Gigabit
Ethernet, Fast Ethernet
and 155Mbps
TP-PMD/CDDI
CAT-6 CMR 23AWG 4-pair
STP Cable
07/31/17 Rev. 3 Approved by: P. M. P.
NEW-9806351
Rip-cord Yes
Drain Wire Yes
Standards: ISO/IEC11801, TIA-568-C.2
Jacket Physical
Properties
Before aging Tensile Strength (Mpa) ≥13.5
Elongation (%) ≥150
Aging period (ºC x hrs) 100ºC x 24h x 7d
After aging Tensile Strength (Mpa) ≥12.5
Elongation (%) ≥125
Cold bend bend(-20±2ºx4h) 8xCable O.D., No visible cracks
Electrical
Characteristics
20ºC
1.0-250.0MHz Impedance (Ω) 100±15
1.0-250.0MHz Delay Skew (ns/100m) ≤45
Unbalanced-to-ground capacitance (pf/100m)max 330
DC resistance (Ω/100m) max: 9.38
DC conductor Resistance unbalance % max 5.0
